FCI / Molex 35V Custom Membrane Switch High Reliability Tactile For GPS

FCI / Molex 35V Custom Membrane Switch High Reliability Tactile For GPS
FCI / Molex 35V Custom Membrane Switch High Reliability Tactile For GPS

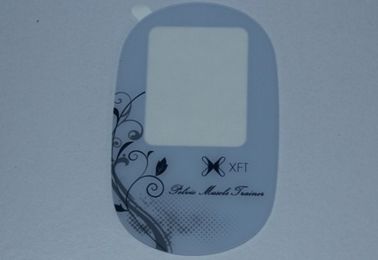

Büyük resim :  FCI / Molex 35V Custom Membrane Switch High Reliability Tactile For GPS

Ürün ayrıntıları:

Place of Origin: Dongguan,Guangdong, China
Marka adı: Foundation
Sertifika: Raw Material Pass RoHS, SGS Test
Model Number: HC-MSO-305

Ödeme & teslimat koşulları:

Minimum Order Quantity: 50/pcs
Fiyat: Negotiable
Packaging Details: Each in Polybag, Then in Carton or as Per Request
Delivery Time: sample time:9days,mass production:12-15days
Payment Terms: L/C,T/T
Supply Ability: 100, 000PCS/Month
Detaylı ürün tanımı
Vurgulamak:

custom membrane switches

,

membrane switch and panel

FCI / Molex 35V Custom Membrane Switch High Reliability Tactile For GPS








Product Description


All our circuit, graphic overlays and membrane switches are thoroughly tested and inspected before shipment
Flexible Printed Circuit
Material: Polyester witch conductive sliver and Carbon
Rear Adhesive: American3M 467MP, 3M 468MP, 3M9472LE, etc




Performance indicators:


1. Electronic characteristics
Circuit rating: 35V (DC), 100mA, 1W
Contact resistance: 10Ω --700Ω (According the trace length and materials to confirm)
Insulation resistance: > 100MΩ 250V DC
Contact bounce: ≤ 5ms Dielectric withstand: 250VRms (50-60Hz 1min)
Life expectancy: Flat type ≥ 5 million times, tactile type: ≥ 1 million times
2. Mechanical Properties Actuation force: Flat type 57-284G (2-10 Oz), tactile type 170-397g (6-14 Oz) Switch stroke: Flat type 0.1-0.5mm, tactile type 0.6-1.5mm
3. Environmental parameters
Operating Temperature: -40 - +80, Storage temperature: -40 - +85 Humidity: 40, 90% -95%, 240 hours.
Matching color: Pantone color matching system..






Production Capacity:



1 Million times
Unit price: Negotiable/
Shipment terms: EXW or FOB
Payment terms: T/T
Origin: Dongguang,China.
Packing: In carton

Add to Basket





Product Description:



Materials Textured PC, gloss PC with matte finish, Autotype PET and PVC
Thickness 0.5, 0.7, 0.8 and 1.0mm
LED windows Clear or translucent with all colors
Embossed keys Polydome and rim
Metal dome Brand of Nicomatic and Innovan, nickel and gold plated
Tail With mylar and UV
Connector Nicomatic, FCI, Molex and Zif
Adhesive 3M 467, 468, 3M9495, 3M7945 and 3M7959
Notice We have the capacity to provide you membrane switches with other special requirements, such as waterproof, Shielding, Windows/Lens Coating, Embedded LEDs, UV glossy/ matte/ textured, etc.
