Matt Surface Tactile Dome Switch Custom Electronics Push Button

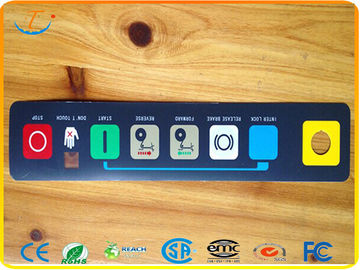

Büyük resim : Matt Surface Tactile Dome Switch Custom Electronics Push Button

Ürün ayrıntıları:

Place of Origin:	guangdong,china
Marka adı:	Tiantai:membrane switch
Sertifika:	SGS
Model Number:	TT02

Ödeme & teslimat koşulları:

Minimum Order Quantity:	1000pcs
Fiyat:	EXW price/FOB shenzhen port price
Packaging Details:	standard export market
Delivery Time:	within 15 workdays after confirm sample
Payment Terms:	T/T,western union,paypal
Supply Ability:	100000pcs/year

İletişim

Detaylı ürün tanımı

Vurgulamak:

PCB Membrane Switch

Tactile Dome Switch

Matt Surface Tactile Dome Switch Custom Electronics Push Button

overlay material : PET /PC
adhesive: 3M467 & 3M468 or as per request
High life time :>1million times
Pass:ISO9001:2008 RoHS.SGS
Membrane Switch Overlay
Custom made OEM/ODM
Rasing available
Membrane switch faceplate
Withstand millions of cycles
perfect exterior
metal dome or silicone keypad is also available.
Connector with housing

Parameter

Maximum Circuit Rating	35V( DC)100mA 1W
Contact Resistance	10Ω~500Ω(Depending on trace length & material used).
Insulation Resistance	100MΩ at 100V DC
Dielectric Withstand	250 V Rms (50~60 Hz 1 min.)
Contact Bounce	5ms
Life Expectancy	Flat type ≧ 5 million closures
	Mylar type ≧ 2 million closures
	Metal type ≧ 1 million closures
Actuation Force	Flat type = 60 to 300 g (2 to 10 oz)
Actuation Force	Tactile type = 180 to 400 g (6 to 14 oz)
Switch Stroke	Flat type = 0.1 to 0.5mm
Switch Stroke	Tactile type = 0.6 to 1.5mm
Operation Temperature	Flat/Metal dome: -40 °C to +80 °C
Operation Temperature	Poly dome: -20 °C to +55 °C
Storage Temperature	Flat/Metal dome: -40 °C to +85 °C
Storage Temperature	Poly dome: -40 °C to +60 °C
Humidity	40 °C , 90% ~ 95% for 240 hours
Vibration	20 G's0 max
Vibration	(10-200 Hz,MIL-STD-202,M204,Condition B)

Applications:

Products are widely used in communication, industrial control, household appliances, GPS, children's kid-learning, electronic reading machine, various game machines, Instruments and Apparatuses, attendance machine,Electronic scale, medical equipment, electronic tools equipment, automatic sewing machine,Embroidery Machine, Machine Maintenance equipment, computer keyboard and electronic calculators and etc.

Specialize in manufactuing membrane switch

Overlay+circuit+LED+metal dome or poly dome array+connector+double side tape

EL backlight +Rubber keys

Aluminum plate+Rubber keys

Metal domes

Flat without Tactile Effect

Embossing with Tactile Effect

Embossing with Metal Dome

Membrane Switch with FPC
