Electrical Moulded Case Circuit Breakers Automotive , Commercial Circuit Breaker

Electrical Moulded Case Circuit Breakers Automotive , Commercial Circuit Breaker
Electrical Moulded Case Circuit Breakers Automotive , Commercial Circuit Breaker

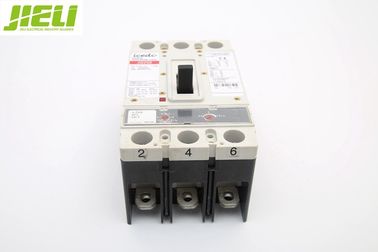

Büyük resim :  Electrical Moulded Case Circuit Breakers Automotive , Commercial Circuit Breaker

Ürün ayrıntıları:
Place of Origin: Zhejiang,China(Mainland)
Marka adı: JIELI
Sertifika: CE/ISO9001/CB/TUV
Model Number: JM10
Ödeme & teslimat koşulları:
Minimum Order Quantity: 500pieces
Fiyat: Negotiable
Packaging Details: Standard export carton or according to your request.
Delivery Time: Within 20 days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,CASH
Supply Ability: 100000pieces per month.
Detaylı ürün tanımı
Vurgulamak:

mccb switch



JM10 New type electrical mccb moulded case circuit breaker





Quick Detail:



Place of Origin:

Zhejiang China (Mainland)

Brand Name:

ICEDC

Model Number:

JM10

Type:

Moulded Case Circuit Breaker

Poles Number:

3

Crust color:

White/Black

Standard:

IEC60947-2

Certificate:

CE,ROHS, CB,ISO9001

Quality:

A

Price:

Reasonable

Appliance:

Protect circuit

Rated current:

160A

Rated voltage:

400V

Ui:

750V

Uimp:

8KV





Description:



JM10 series MCCB moulded case circuit breaker is suitable for industrial or commercial power and lighting with AC50/ 60Hz, rated working voltage up to AC600V/DC250V, rated current up to 630A.

JM10 series moulded case circuit breaker is a kind of economical breaker with the characters of stable and reliable function, beautiful appearance, small size and long life.

JM10 series moulded case circuit breaker can be used for conversion of line and infrequent starting motor.

JM10 series moulded case circuit breaker can also be attached to install the accessories which have protection function for avoiding loss-voltage, under voltage.

JM10 series moulded case circuit breaker can install connection line with front board and back board.

JM10 series moulded case circuit breaker also can equip hand-operating apparatus or motor-operating apparatus to control in a remote distance.





Specifications:



TYPE

JM10

RATED CURRENT OF FRAME SIZE   INM(A)

63

RATED CURRENT IN(A)

10,16,20,25,32,40,50,63

RATED OPERATION   VOLTAGE UE(V)

AC400

RATED INSULATION VOLTAGE UI(V)

AC500

NUMBER OF POLES

3

3

4

LEVEL OF RATED ULTIMATE SHORT CIRCUIT BREAKING   CAPACITY

S

H

RATED ULTIMATE SHORT   CIRCUIT BREAKING CAPACITY ICU(KA)

AC690V





AC400V

25

50

RATED SERICE SHORT   CIRCUIT BREAKING CAPACITY ICS(KA)

AC690V





AC400V

18

35

OPERATION LIFE WITH CURRENT

4500

OPERATION LIFE WITHOUT CURRENT

8500

SIZE

L

135

W

78

103

H

73.5

81.5

ARCING DISTANCE(MM)

0,≤50





Our service:



1. Samples: provide free samples.

2. Package: all products will be well packed before shipping.

3. Warranty: all products have 2-5 years warranty.

4. Delivery: within 30days after received the deposit.

5. Provide OEM and ODM service.

6. We can help you with any of your idea to design and put it into production.

7. Provide help for building factories, such as: spare parts, technical questions, financial matter, management problem , approach of sales...





FAQ:



Q1. What's the payment term?

A. We accept T/T, L/C, D/P, WEST UNION, PAYPAL, CASH

Q2. What's the delivery time?

A. Usually it will take about three weeks for production

Q3. What is the standard of package?

A. Export standard package or special package according to customer requirement

Q4. What kind of product quality your factory offer?

A. We offer most competitive prices with best quality

Q5. Do you accept OEM and ODM business?

A: We accept OEM with your authorization.

Q6. What kind of material of circuit breaker?

A. We have two types, one copper coil with silver point and the other is brass coil with copper point. It depends on your requirement. In fact, those two have no difference. If normally works well, only except the electrical life. Copper and silver is better and are also in higher price.
