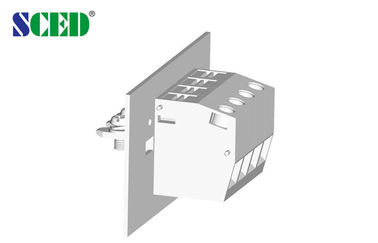

Pitch 12.1mm Through Panel Terminal Blocks / Bulkhead Connectors 600V 85A 2P-24P

Pitch 12.1mm Through Panel Terminal Blocks / Bulkhead Connectors 600V 85A 2P-24P
Pitch 12.1mm Through Panel Terminal Blocks / Bulkhead Connectors 600V 85A 2P-24P

Büyük resim :  Pitch 12.1mm Through Panel Terminal Blocks / Bulkhead Connectors 600V 85A 2P-24P

Ürün ayrıntıları:
Place of Origin: Shenzhen, China
Marka adı: SCED
Sertifika: UL, CE
Model Number: TR-16N-03
Ödeme & teslimat koşulları:
Minimum Order Quantity: 200
Fiyat: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 100K poles each monthly
Detaylı ürün tanımı
Type: Terminal Block Connector,Terminal Block Connectors, PCB Connectors Pitch: 12.1mm
Number Of Contacts: 2P-24P Wire Range: 4-20
Rated Voltage: 600V Rated Current: 85A
Color: Black Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
Vurgulamak:

plug in terminal block connector

,

pcb terminal block connector


Detailed product Description:

Pitch 12.1mm Through Panel Terminal Blocks / Bulkhead Connectors 600V 85A 2P-24P Feed-Through Terminal Blocks / Bulkhead connectors
■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Deck;  □Double decks;  □Triple decks
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

Through panel terminal blocks, Bulkhead connectors, Feed Through connectors, Electrical terminal Blocks, terminal block connectors


How to order:

Pitch 12.1mm Through Panel Terminal Blocks / Bulkhead Connectors 600V 85A 2P-24P 0

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


Parameter and Drawing Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 85



600 / 5

Wire Range                       AWG

4-20



4-20

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

630 / 101

800 / 101

1000 / 101

Rated Surge Voltage                 KV

6

6

6

Rated Connecting Capacity           mm2

16

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Steel / Nickel Plated

Conduction Board / Plating

Copper / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

16

Screw / Torque                    / lbf.in

M5 / 22-25









Pitch 12.1mm Through Panel Terminal Blocks / Bulkhead Connectors 600V 85A 2P-24P 1


Competitive Advantage:


1.    Stable good quality

2.    Competitive price

3.    Quickly response

4.    Full range products for selection

5.    Flexible to design the exact part per customers’ demand
