Electric Motor Thermal Protection / Thermal Motor Protector For Battery Charge

Büyük resim : Electric Motor Thermal Protection / Thermal Motor Protector For Battery Charge

Ürün ayrıntıları:

Place of Origin:	China
Marka adı:	DESHENG
Sertifika:	UL,VDE,CE CQC
Model Number:	BR-A2D

Ödeme & teslimat koşulları:

Minimum Order Quantity:	1000pcs
Packaging Details:	5000pcs per package
Delivery Time:	3-10 days on order date
Payment Terms:	T/T L/C D/P
Supply Ability:	3,000,000pcs/month

İletişim

Detaylı ürün tanımı

Features:	Compact, miniature	Product name:	Electric Motor Thermal Protection
Applications:	Small motor / Transformer / Washer and dryer	Contact capacity:	125Vac/10A, 250Vac/6A, 24Vdc/10A
Cycles life:	6,000 cycles	Certificates:	UL, VDE, CE CQC
Vurgulamak:	motor thermal protection

Electric Motor Thermal Protection / Thermal Motor Protector For Battery Charge

Description:

Changsheng BR-A2D series motor protector is built to meet almost any requirement of protection in a wide range of small motors, small transformers, solenoids, and more. This compact motor protector is the best solution to protect the wide variety of motors under 1 Hp used in industrial and domestic appliances against locked rotor and overload situations.
This motor thermal protector consists of a metal SPCC housing that holds and protects the inner components against infiltration as well as mechanical deformation. In single–phase motors, the BR-A2D can be mounted directly in the main circuit to serve as an on– or in–winding protector.

Applications:

Small motors
Coils
Transformers
Washers and dryers
Dishwashers
Automotive accessory motors
PC boards
Battery charges
………and more.

Specifications:

Contact capacity	125Vac/10A, 250Vac/6A, 24Vdc/10A
The bimetal carries current or not	Not
Cycles life	6,000 cycles
Open temperature	50°C to 150°C in increments of 5°C
Temperature Tolerance	±5°C
Differential Temperature	depending on open temperature
Seal	Epoxy resin
Contact resistance	≤50 m
Insulation resistance	The resistance between the leads and insulation sleeve is >100 M with 500 VDC at 25 °C.
Lead wire pull strength	30 N applied from lead to lead for 5sec. No slip-off or rupture

Competitive Advantage:

1. The strongest Chinese manufacturer, ISO 9001and ISO14001 recognized.

2. Compact, miniature size.

3. UL,VDE,CE CQC Approved.

4. Individually temperature checked on modern, custom-designed equipments from Japan.

5. Snap–action disc, normally on.

6. Epoxy resin

7. Bimetal discs carry circuit current, so it is current and temperature double sensitivity for maximum design flexibility and application

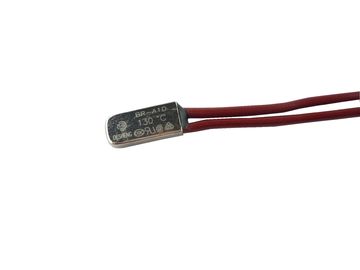

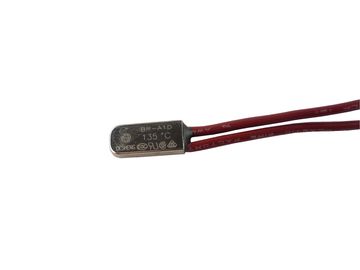

BR-A2D with standard metal case

Electric Motor Thermal Protection / Thermal Motor Protector For Battery Charge 0

Electric Motor Thermal Protection / Thermal Motor Protector For Battery Charge 1

BR-A2D with enforced metal case

Note: wall thickness of the enforced case is 0.5m minimum and it will withstand 30MPa injection pressure (no deformation)

①Metal case ②Plate ③Bimetallic disc ④Spring ⑤Movable contact ⑥Stationary piece ⑦Base ⑧Epoxy resin ⑨Lead wire ⑩Sleeve

Electric Motor Thermal Protection / Thermal Motor Protector For Battery Charge 2
